Civil Engineering 2025 Paper I 50 marks Solve

Q2

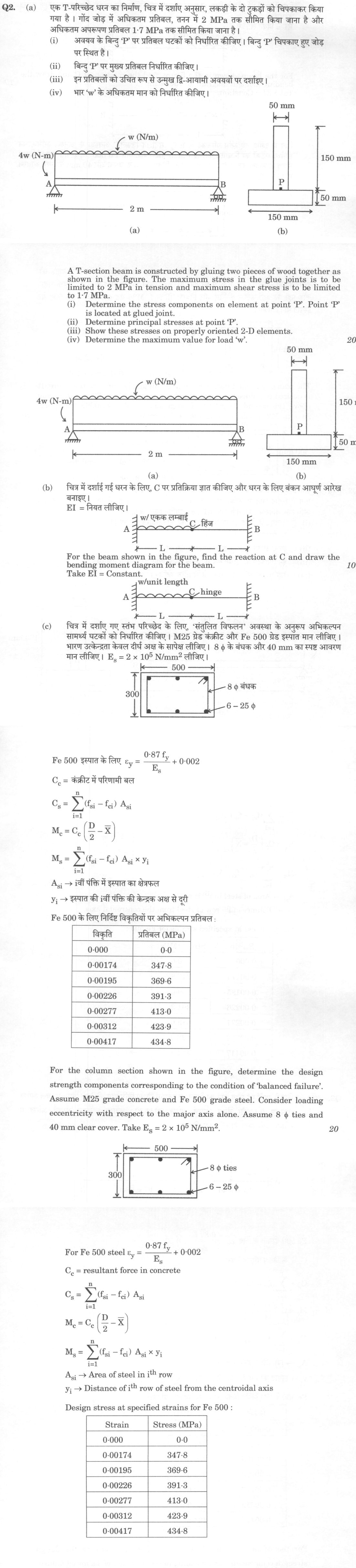

(a) A T-section beam is constructed by gluing two pieces of wood together as shown in the figure. The maximum stress in the glue joints is to be limited to 2 MPa in tension and maximum shear stress is to be limited to 1·7 MPa. (i) Determine the stress components on element at point 'P'. Point 'P' is located at glued joint. (ii) Determine principal stresses at point 'P'. (iii) Show these stresses on properly oriented 2-D elements. (iv) Determine the maximum value for load 'w'. 20 marks (b) For the beam shown in the figure, find the reaction at C and draw the bending moment diagram for the beam. Take EI = Constant. 10 marks (c) For the column section shown in the figure, determine the design strength components corresponding to the condition of 'balanced failure'. Assume M25 grade concrete and Fe 500 grade steel. Consider loading eccentricity with respect to the major axis alone. Assume 8 φ ties and 40 mm clear cover. Take Es = 2 × 10⁵ N/mm². For Fe 500 steel εy = (0.87 fy/Es) + 0.002. Cc = resultant force in concrete. Cs = Σ(i=1 to n) (fsi - fci) Asi. Mc = Cc(D/2 - X̄). Ms = Σ(i=1 to n) (fsi - fci) Asi × yi. Asi → Area of steel in ith row. yi → Distance of ith row of steel from the centroidal axis. Design stress at specified strains for Fe 500: Strain 0.000 → Stress 0.0 MPa; 0.00174 → 347.8 MPa; 0.00195 → 369.6 MPa; 0.00226 → 391.3 MPa; 0.00277 → 413.0 MPa; 0.00312 → 423.9 MPa; 0.00417 → 434.8 MPa. 20 marks

हिंदी में प्रश्न पढ़ें

(a) एक T-परिछेद धरन का निर्माण, चित्र में दर्शाए अनुसार, लकड़ी के दो टुकड़ों को चिपकाकर किया गया है। गोंद जोड़ में अधिकतम प्रतिबल, तनन में 2 MPa तक सीमित किया जाना है और अधिकतम अपरूपण प्रतिबल 1·7 MPa तक सीमित किया जाना है। (i) अवयव के बिंदु 'P' पर प्रतिबल घटकों को निर्धारित कीजिए। बिंदु 'P' चिपकाए हुए जोड़ पर स्थित है। (ii) बिंदु 'P' पर मुख्य प्रतिबल निर्धारित कीजिए। (iii) इन प्रतिबलों को उचित रूप से अनुमुख द्वि-आयामी अवयवों पर दर्शाइए। (iv) भार 'w' के अधिकतम मान को निर्धारित कीजिए। 20 अंक (b) चित्र में दर्शाई गई धरन के लिए, C पर प्रतिक्रिया ज्ञात कीजिए और धरन के लिए बक्रन आघूर्ण आरेख बनाइए। EI = नियत लीजिए। 10 अंक (c) चित्र में दर्शाए गए स्तंभ परिच्छेद के लिए, 'संतुलित विफलन' अवस्था के अनुरूप अभिकल्पन सामर्थ्य घटकों को निर्धारित कीजिए। M25 ग्रेड कंक्रीट और Fe 500 ग्रेड इस्पात मान लीजिए। भारण उत्केंद्रता केवल दीर्घ अक्ष के सापेक्ष लीजिए। 8 φ के बंधक और 40 mm का स्पष्ट आवरण मान लीजिए। Es = 2 × 10⁵ N/mm² लीजिए। Fe 500 इस्पात के लिए εy = (0.87 fy/Es) + 0.002। Cc = कंक्रीट में परिणामी बल। Cs = Σ(i=1 से n) (fsi - fci) Asi। Mc = Cc(D/2 - X̄)। Ms = Σ(i=1 से n) (fsi - fci) Asi × yi। Asi → इवी पंक्ति में इस्पात का क्षेत्रफल। yi → इस्पात की इवी पंक्ति की केंद्रक अक्ष से दूरी। Fe 500 के लिए निर्दिष्ट विकृतियों पर अभिकल्पन प्रतिबल: विकृति 0.000 → प्रतिबल 0.0 MPa; 0.00174 → 347.8 MPa; 0.00195 → 369.6 MPa; 0.00226 → 391.3 MPa; 0.00277 → 413.0 MPa; 0.00312 → 423.9 MPa; 0.00417 → 434.8 MPa। 20 अंक
